背景彩带
简介
这是一个基于 Canvas 实现的动态渐变彩带背景效果，专为 VitePress 主题设计的 Vue Composition API 组件，主要特点包括：
🌈 流动渐变 ：通过三角函数计算实现彩虹色渐变效果
🎨 视觉可定制 ：支持透明度、彩带宽度、层级等样式配置
📱 响应式 ：自动适配屏幕尺寸和高 DPI 显示
🖱️ 交互支持 ：可配置点击重绘功能,鼠标每次点击，随机生成彩带背景。
新建文件
在docs\.vitepress\theme\hooks\文件中新建useRibbon.ts文件
ts
// 背景彩带
import { isClient, useMounted, useScopeDispose } from "vitepress-theme-teek";
interface UseRibbonOptions {
/**
* 透明度
*
* @default 0.6
*/
alpha?: number;
/**
* 宽度
*
* @default 90
*/
size?: number;
/**
* z-index
*
* @default -1
*/
zIndex?: number;
/**
* 是否立即执行彩带渲染
*
* @default true
*/
immediate?: boolean;
/**
* 插入的元素选择器
*/
insertSelector?: string;
/**
* 插入方式
*
* @default append
*/
insertWay?: "prepend" | "append" | "after" | "before";
/**
* 点击页面时是否重新渲染彩带
*
* @default false
*/
clickReRender?: boolean;
/**
* 是否为彩带元素绑定点击事件，仅限 clickReRender 为 true 和 zIndex >= 0 时触发。
* 1、当为 true，则给彩带元素绑定点击事件
* 2、当为 false，则给全局 document 绑定点击事件
*
* @default false
*/
ribbonDomBindClick?: boolean;
}
const fn = () => {};
export const useRibbon = (options: UseRibbonOptions = {}) => {
let canvas: HTMLCanvasElement | null = null;
let ctx: CanvasRenderingContext2D | null = null;
let cleanupFn = fn;
const {
alpha = 0.6,
size = 90,
zIndex = -1,
insertSelector,
insertWay = "append",
clickReRender = false,
ribbonDomBindClick = false,
immediate = true,
} = options;
const initRibbon = () => {
if (!isClient) return fn;
if (document.getElementById("ribbon")) return fn;
// 创建 canvas
canvas = document.createElement("canvas");
canvas.id = "ribbon";
canvas.style.cssText = `position:fixed;top:0;left:0;z-index:${zIndex}`;
// 插入 canvas 的元素选择和方式
if (insertSelector)
document.querySelector(insertSelector)?.[insertWay](canvas);
document.body[insertWay](canvas);
const dpr = window.devicePixelRatio || 1;
const width = window.innerWidth;
const height = window.innerHeight;
const math = Math;
let r = 0;
const PI_2 = math.PI * 2;
const cos = math.cos;
const random = math.random;
canvas.width = width * dpr;
canvas.height = height * dpr;
ctx = canvas.getContext("2d");
if (!ctx) return fn;
ctx.scale(dpr, dpr);
ctx.globalAlpha = alpha;
let path: { x: number; y: number }[] = [];
function init() {
if (!ctx) return fn;
ctx.clearRect(0, 0, width, height);
path = [
{ x: 0, y: height * 0.7 + size },
{ x: 0, y: height * 0.7 - size },
];
while (path[1].x < width + size) {
draw(path[0], path[1]);
}
}
function draw(
start: { x: number; y: number },
end: { x: number; y: number }
) {
if (!ctx) return fn;
ctx.beginPath();
ctx.moveTo(start.x, start.y);
ctx.lineTo(end.x, end.y);
const nextX = end.x + (random() * 2 - 0.25) * size;
const nextY = geneY(end.y);
ctx.lineTo(nextX, nextY);
ctx.closePath();
r -= PI_2 / -50;
ctx.fillStyle =
"#" +
(
((cos(r) * 127 + 128) << 16) |
((cos(r + PI_2 / 3) * 127 + 128) << 8) |
(cos(r + (PI_2 / 3) * 2) * 127 + 128)
).toString(16);
ctx.fill();
path[0] = path[1];
path[1] = { x: nextX, y: nextY };
}
function geneY(y: number): number {
const temp = y + (random() * 2 - 1.1) * size;
return temp > height || temp < 0 ? geneY(y) : temp;
}
init();
// 点击重新绘制
const handleClick = () => init();
const dom = ribbonDomBindClick ? canvas : document;
if (clickReRender) {
dom.addEventListener("click", handleClick);
dom.addEventListener("touchstart", handleClick);
}
// 返回清理函数
return () => {
if (clickReRender) {
dom.removeEventListener("click", handleClick);
dom.removeEventListener("touchstart", handleClick);
}
if (canvas && canvas.parentNode) {
canvas.parentNode.removeChild(canvas);
}
canvas = null;
ctx = null;
};
};
const start = () => {
cleanupFn = initRibbon();
};
const stop = () => {
cleanupFn();
};
useMounted(() => {
if (immediate) start();
});
useScopeDispose(stop);
return { start, stop };
};注册使用
在docs\.vitepress\theme\components\TeekLayoutProvider.vue中注册使用
提示
- 如果想禁用鼠标点击随机生成彩带，可以设置
clickReRender为false - 如果不想在文章页显示彩带可以删除
const { start: startRibbon, stop: stopRibbon } =
vue
<script setup lang="ts" name="TeekLayoutProvider">
import { useRibbon } from "../hooks/useRibbon"; //导入彩带背景
// 彩带背景
const { start: startRibbon, stop: stopRibbon } = useRibbon({ immediate: false, clickReRender: true }); // 点击页面重新渲染彩带
</script>

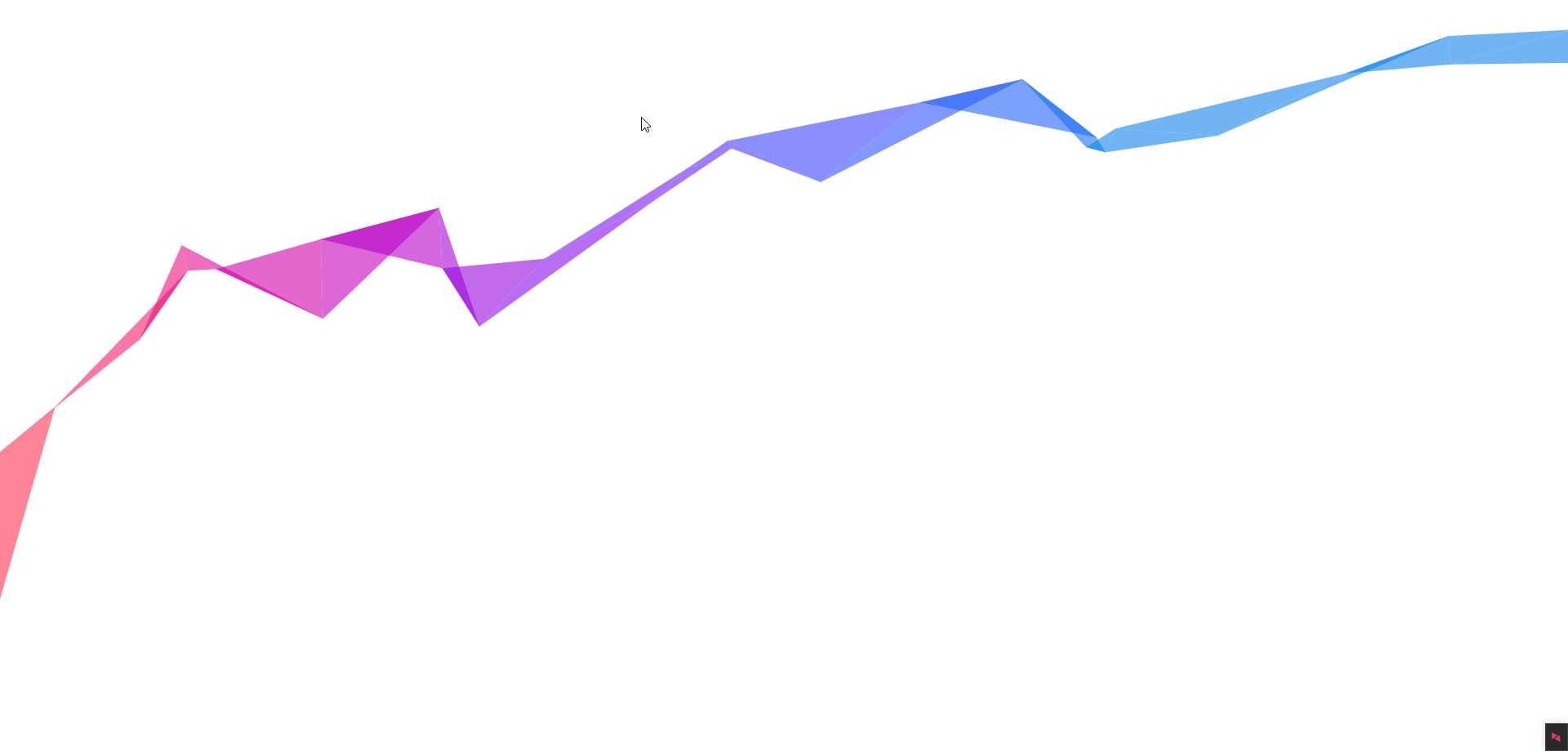

效果
HTML 中使用
html
<!DOCTYPE html>
<html lang="zh-CN">
<head>
<meta charset="UTF-8" />
<style>
canvas {
position: absolute;
top: 0;
left: 0;
z-index: 0;
width: 100%;
height: 100%;
pointer-events: none;
}
</style>
</head>
<body>
<canvas></canvas>
<script>
document.addEventListener("touchmove", function (e) {
e.preventDefault();
});
var c = document.getElementsByTagName("canvas")[0],
x = c.getContext("2d"),
pr = window.devicePixelRatio || 1,
w = window.innerWidth,
h = window.innerHeight,
f = 90,
q,
m = Math,
r = 0,
u = m.PI * 2,
v = m.cos,
z = m.random;
c.width = w * pr;
c.height = h * pr;
x.scale(pr, pr);
x.globalAlpha = 0.6;
function i() {
x.clearRect(0, 0, w, h);
q = [
{ x: 0, y: h * 0.7 + f },
{ x: 0, y: h * 0.7 - f },
];
while (q[1].x < w + f) d(q[0], q[1]);
}
function d(i, j) {
x.beginPath();
x.moveTo(i.x, i.y);
x.lineTo(j.x, j.y);
var k = j.x + (z() * 2 - 0.25) * f,
n = y(j.y);
x.lineTo(k, n);
x.closePath();
r -= u / -50;
x.fillStyle =
"#" +
(
((v(r) * 127 + 128) << 16) |
((v(r + u / 3) * 127 + 128) << 8) |
(v(r + (u / 3) * 2) * 127 + 128)
).toString(16);
x.fill();
q[0] = q[1];
q[1] = { x: k, y: n };
}
function y(p) {
var t = p + (z() * 2 - 1.1) * f;
return t > h || t < 0 ? y(p) : t;
}
document.onclick = i;
document.ontouchstart = i;
i();
</script>
</body>
</html>
